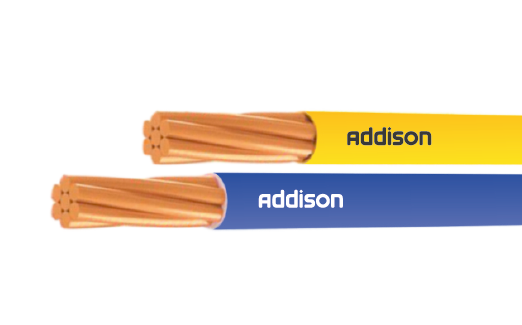

Single Core Cables – Multistranded – H05V-R, H07V-R
Construction
Conductor: Multiple- wire, round Copper Conductor, Class 2 DIN VDE 0281, IEC 60228
Insulation: Heat – Resistant Polyvinyl Chloride PVC Insulation
Colour: Green/Yellow, Blue, Black, Grey, Orange, Pink, Red,
Violet, White, Green, Yellow or other Colours
Flame Propagation : Flame Retardant Test as per IEC 60332-1
Features
> Special Heat Resistant Insulation
> High Current Carrying Capacity
> Less Heat Energy Radiation
> Excellent Resistant to Moisture, Abrasion, Grace, Oil
> Insulation is Highly Thermal Stable
> Long Flex Life
> Excellent Mechanical & Electrical Properties
> Harmonized Acc. to European Standards
Technical Detail
Operating Temperature : H05V-R/H07V-R: -20°C to +80°C, H05V2-R/H07V2-R: -30°C to +90°C
Nominal Voltage: H05V-R/ H05V2-R: 300/500 V, H07V-R/H07V2-R: 450/750 V
Test Voltage: H05V-R/ H05V2-R: 2000 V, H07V-R/H07V2-R: 2500 V
Insulation Resistance: H05V-R/H07V-R: 10 MΩ x km, H05V2-R/H07V2-R: 20 MΩ x km
Min. Bending Radius: 4 x Cable Diameter:
Application
For internal wiring of appliances as well as installation in an electrical conduit pipe
Download Brochure
Get a Quote
Let's Discuss
H07V-U (300/500 V)
| Size in mm² | Nos/Dia. (Nom.) | Insulation Thickness in mm (Nom.) | ||
| Outer Dia in mm (Appx.) | Max. C.R in ohm/km Copper | |||
| 0.5 | 7/0.30 | 0.60 | 2.20 | 36.00 |
| 0.75 | 7/0.37 | 0.60 | 2.30 | 24.50 |
| 1 | 7/0.43 | 0.60 | 2.70 | 18.10 |
H07V-U (450/750 V)
| Size in mm² | Nos/Dia. (Nom.) | Insulation Thickness in mm (Nom.) | ||
| Outer Dia in mm (Appx.) | Max. C.R in ohm/km Copper | |||
| 1.5 | 7/0.52 | 0.70 | 3.00 | 12.10 |
| 2.5 | 7/0.67 | 0.80 | 3.60 | 7.41 |
| 4 | 7/0.85 | 0.80 | 4.30 | 4.61 |
| 6 | 7/1.05 | 0.80 | 4.80 | 3.08 |
| 10 | 7/1.35 | 1.00 | 6.10 | 1.83 |
| 16 | 7/1.71 | 1.00 | 7.40 | 1.15 |
| 25 | 7/2.14 | 1.20 | 8.90 | 0.727 |
| 35 | 7/2.52 | 1.20 | 10.10 | 0.524 |
| 50 | 19/1.83 | 1.40 | 11.90 | 0.387 |
| 70 | 19/2.14 | 1.40 | 14.00 | 0.268 |
| 95 | 19/2.52 | 1.60 | 13.30 | 0.193 |
| 120 | 37/2.03 | 1.60 | 17.80 | 0.153 |
| 150 | 37/2.27 | 1.80 | 20.00 | 0.124 |
| 185 | 37/2.52 | 2.00 | 23.80 | 0.0991 |
| 240 | 61/2.24 | 2.20 | 26.50 | 0.0754 |
| 300 | 61/2.50 | 2.40 | 29.60 | 0.0601 |
| 400 | 61/2.88 | 2.60 | 34.00 | 0.047 |
| 500 | 61/3.23 | 2.80 | 37.70 | 0.0366 |
| 630 | 91/2.97 | 2.80 | 42.60 | 0.0282 |
